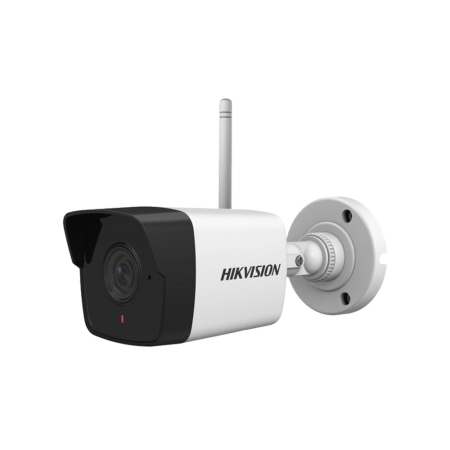

DS-2CV1021G0-IDW1 ( 2 MP IR Fixed Bullet Wi-Fi )

2 MP IR Fixed Bullet Wi-Fi

Thông số:

1/2.8" progressive scan CMOS
1920 × 1280@30fps
2.8/4 mm fixed lens
Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
3D DNR
Up to 30 m IR range
Built-in micro SD/SDHC/SDXC slot, up to 128G
Built-in Wi-Fi
Mobile monitoring via Hik-Connect
IP66

Liên hệ báo giá

Chi tiết sản phẩm

Camera
Image Sensor:		1/2.8" Progressive Scan CMOS
Min. Illumination:		Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
Shutter time:		1/3 s to 1/100,000 s
Slow shutter:		Support
Lens:		2.8 mm, horizontal FOV: 114.5°, vertical FOV: 62°, diagonal FOV: 135.5° 4 mm, horizontal FOV: 86°, vertical FOV: 46.5°, diagonal FOV: 102.5°
Lens Mount:		M12
Adjustment Range:		Pan: 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90°
Day& Night:		IR cut filter with auto switch
Wide Dynamic Range:		Digital WDR
Digital noise reduction:		3D DNR

Compression Standard
Video Compression:		H.264/MJPEG
Video bit rate:		32Kbps~8Mbps
Audio Compression:		G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:		64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)

Max. Image Resolution:		1920 x 1080
Frame Rate:		50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Sub Stream:		50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Image Enhancement:		BLC/3D DNR
Image Settings:		Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Day/Night Switch:		Day, night, auto, scheduled

Network
Network Storage:		microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:		Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:		TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, IPv6, UDP, QoS, Bonjour
General Function:		Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
System Compatibility:		ONVIF (Profile S, Profile G),ISAPI

Interface
Audio:		1 Built-in mic, mono sound
Communication Interface:		1 RJ45 10M / 100M Ethernet interface
On-board storage:		Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:		Yes

Wi-Fi Specification (-W)
Wireless Standards:		IEEE802.11b, 802.11g, 802.11n
Frequency Range:		2.412 GHz to 2.4835 GHz
Channel Bandwidth:		20/40MHz Support
Modulation Mode:		802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Security:		64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate:		11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps
Wireless Range:		50m(depend on environment)

General
Operating Conditions:		-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:		12 V DC ± 25%
Power Consumption:		12 VDC, 0.4 A, Max: 5 W
Weather Proof:		IP66
IR Range:		Up to 30m
Dimensions:		Camera: 99 mm × 68 mm × 66 mm (3.9" × 2.7" × 2.6") With package: 172 mm × 110 mm × 99 mm (6.8" × 4.3" × 3.9")
Weight:		Camera: 272 g (0.6 lb.) With package: 517 g (1.1 lb.)
