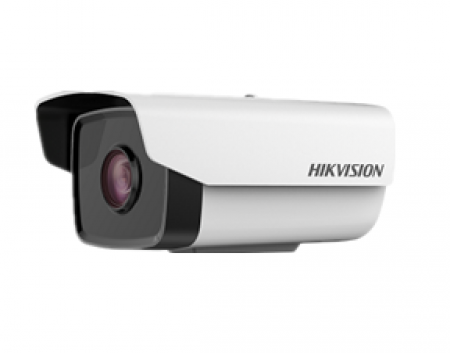

DS-2CD1221-I3 ( 2.0 MP CMOS IR Network Bullet Camera )

2.0 MP CMOS IR Network Bullet Camera

Thông số:

1/2.8” Progressive Scan CMOS
 Up to 2.0 megapixel high resolution
 IR range: 30 m(-I3), 50 m (-I5)
 Dual stream
 Digital Wide Dynamic Range
 3D DNR (Digital Noise Reduction)
 over PoE (Power Ethernet), optional
 IP67 weather-proof protection
 Mobile Monitoring via Hik-Connect

Liên hệ báo giá

Chi tiết sản phẩm

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s, support slow shutter
Lens	4mm, horizontal field of view: 83° (6mm: 55°, 8mm: 38.5°, 12mm: 24.6°, optional)
Lens Mount	M12
Day &Night	IR cut filter with auto switch
DNR	3D DNR (Digital Noise Reduction)
Wide Dynamic Range	Digital WDR
Compression Standard
Video Compression	Main stream: H.264 Sub stream: H.264, MJEPG
H.264 Type	Baseline Profile/Main Profile
Video Bit Rate	32 Kbps to 8 Mbps
Dual Streams	Support
Max. Resolution	1920 × 1080
Main Stream Max. Frame Rate	50Hz: 1920 × 1080,1280 × 960,1280 × 720 @25fps 60Hz: 1920 × 1080,1280 × 960,1280 × 720 @30fps
Sub-stream Max. Frame Rate	50Hz: 704 × 576, 640 × 480, 352 × 288, 320 × 240 @25fps 60Hz: 704 × 480, 640 × 480, 352 × 240, 320 × 240 @30fps
Image Settings	Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch	Support auto, scheduled, and triggered by alarm input
Others	Mirror, BLC (area configurable), Region of Interest (support 1 fixed region),
Network
Detections	Motion Detection, Dynamic Analysis,
Alarms	Video Tampering, Network Disconnected, IP Address Conflicted, HDD Full, HDD Error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Standard	ONVIF(PROFILE S,PROFILE G), ISAPI
General Function	Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filter, Watermark
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Power Supply	DS-2CD1221- I3/I5: DC12V ± 25%, PoE (802.3af) DS-2CD1221D - I3/I5: DC12V ± 25%
Power Consumption	-I3: Max. 3.5W
IR Range	-I3: 30 meters
Protection Level	IP67
Dimensions	147.5mm × 78.2mm × 92.9mm (5.8" × 3.1" × 3.7")
Weight	350g (0.8 lb)
