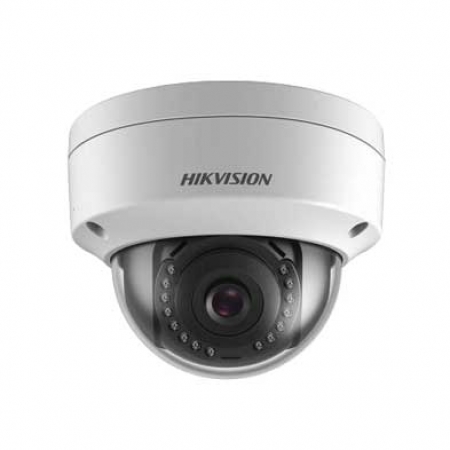

DS-2CD1101-I ( 1 MP CMOS Network Dome Camera )

1 MP CMOS Network Dome Camera

Thông số:

 1/4" progressive scan CMOS
 Up to 1.0 megapixel
 2.8mm/4mm/6mm fixed focal lens
 Up to 30 m IR range
 Dual stream
 Digital WDR (Wide Dynamic Range)
 3D DNR (Digital Noise Reduction)
 PoE (Power over Ethernet)
 IP67, IK10
 Mobile monitoring via Hik-Connect or iVMS-4500

Liên hệ báo giá

Chi tiết sản phẩm

Camera
Image Sensor	1/4" progressive scan CMOS
Min. Illumination	Color: 0.01Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Speed	1/3s to 1/100,000 s, support slow shutter
2.8 mm (4 mm/6 mm),	2.8 mm @F2.0, horizontal field of view 92°, 4 mm @F2.2, horizontal field of view 74° 6 mm @F2.0, horizontal field of view 49°
Lens Mount	M12
Day &Night	IR cut filter with auto switch
2-Axis Adjustment	Pan: 0° to 355°, tilt: 0°to 70°
DNR(Digital Noise Reduction)	3D DNR
WDR(Wide Dynamic Range)	Digital WDR
Compression Standard
Video Compression	Main stream: H.264 Sub stream: H.264/MJPEG
H.264 Type	Baseline profile/Main profile
Video Bit Rate	32 Kbps to2 Mbps
Max. Resolution	1280 × 720
Main Stream Max. Frame Rate	50Hz: 25fps@(1280 × 720) 60Hz: 30fps@(1280 × 720)
Sub-stream Max. Frame Rate	50Hz: 25fps@(640 × 480, 352 × 288,320 × 240) 60Hz: 30fps@(640 × 480, 352 × 240,320 × 240)
Image Settings	Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch	Support auto, scheduled
Others	Mirror, BLC (area configurable), region of interest (support 1 fixed region)
Network
Detections	Motion detection
Alarms	Video tampering, network disconnected, IP address conflicted
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6, Bonjour
Standard	ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI
General Function	One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Reset	Support
General
Operating Conditions	-30 °C to60 °C (-22 °F to140 °F), humidity: 95% or less (non-condensing)
Power Supply	12V DC ± 25%, PoE (802.3af)
Power Consumption	Max. 4 W
Protection Level	IP67, IK10
IR Range	Up to 30 m
Dimensions	Φ111 mm × 82 mm (4.4" × 3.2")
Weight	500 g (1.1 lb.)
