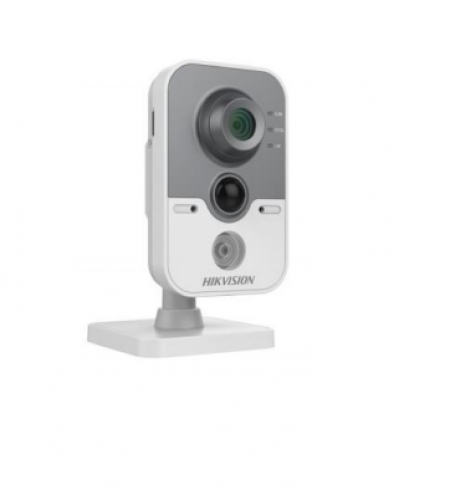

DS-2CD2420F-IW ( 2 Megapixel CMOS Alarm Pro Cube Camera )

2 Megapixel CMOS Alarm Pro Cube Camera

Thông số:

 Up to 2 megapixel (1920 × 1080 @ 30 fps) resolution
 Standard video compression with high compression ratio, ROI (region of interest) encoding
 Progressive scan CMOS
 Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
 IR range approx. 10 meters
 Two-way audio
 Built-in microphone and speaker
 Support Wi-Fi, support WPS configuration with one touch
 Support PIR(Passive Infrared Detection)
 IR cut filter with auto switch
 Support PoE(802.3af)

Liên hệ báo giá

Chi tiết sản phẩm

Camera
Image Sensor		1/2.8" Progressive Scan CMOS
Min. Illumination		0.01Lux @(F1.2,AGC ON), 0 Lux with IR 0.028Lux @(F2.0,AGC ON), 0 Lux with IR
Shutter Speed		1/3 s to 1/100,000 s
Lens		4mm@ F2.0, Angle of view: 85° (2.8mm, 6mm optional)
Lens Mount		M12
Day &Night		IR cut filter with auto switch
Digital Noise Reduction		3D Digital Noise Reduction
WDR		Digital WDR
Compression Standard
Video Compression		H.264 / MJPEG
H.264 encoding level		Main Profile
Video Bit Rate		32Kbps~8Mbps
Audio Compression		G.711/G.722.1/G.726/MP2L2
Audio Bit Rate		64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2)
Max. Resolution		1920 x 1080
Frame Rate		50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) 60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Image Settings		Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
	Backlight	Yes, zone optional
	compensation
ROI		Support
Network
Network Storage		Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB. NAS (Support NFS,SMB/CIFS)
Alarm Trigger		Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols		TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General		One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access

Standard	ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M Ethernet interface
Alarm input	1
Alarm output	1
Wi-Fi Specification(Only for the products with Wi-Fi module built-in)
Wireless Standards	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	20/40MHz Support
Protocols	802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Output Power	11b: 17±1.5dBm @ 11Mbps 11g: 14±1.5dBm @ 54Mbps 11n: 12.5±1.5dBm
Receive Sensitivity	11b: -90dBm @ 11Mbps (Typical) 11g: -75dBm @ 54Mpbs (Typical) 11n: -74dBm (Typical)
Transfer Rates	11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps
Wireless Range	50m(depend on environment)
Wireless Standards	IEEE802.11b, 802.11g, 802.11n
General
Operating Conditions	-30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing)
Power Supply	DC12V/PoE(802.3af)
Power Consumption	MAX. 4.5W
PIR	Angle: 80°
PIR	Range: 10m
IR Range	10 meters
Dimensions (mm)	72.3×89.9×131.3
Weight	400g(0.88lbs)
